This dataset involves monitoring data of deep displacement (inclinometer) on the bank slope of Liugou Reservoir in Xinjiang, mainly including displacement in the x-direction (slope surface orientation) and y-direction (perpendicular to the x-direction) at different depths of the monitoring section.

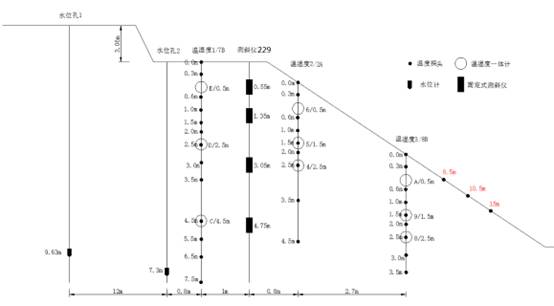

The time range of the dataset is from 16:30 on August 1, 2019 to 8:00 on May 15, 2020. The time interval of this dataset is once every 8 hours. The spatial scope involves two monitoring cross-sections, with recorded ranges of approximately 17.3m × 7.5m and 3.5m × 4.5m, respectively. The inclinometer adopts the Ge Nan GN-2B (30) fixed inclinometer, with a borehole embedded in the inclinometer tube, and then the inclinometer is installed in the inclinometer tube for long-term measurement.
The inclinometer can measure the inclination angle of the inclinometer at different depths. Based on the direct distance of the inclinometer, the inclination angle can be converted into the deformation in the x and y directions at that location.
The fixed inclinometer adopts an impact resistant inclination sensor, which has good reliability, fast stability, few installation accessories, easy assembly, intelligent recognition function, and outputs RS485 digital signals to directly display engineering values (displacement or angle).
Monitoring data from inclinometers.
Observation and monitoring.
The data quality is good.
| # | number | name | type |
| 1 | 2018YFC0809600 | National key R & D plan |
