GLOFs inventory of CPEC - National Cryosphere Desert Data Center

English name

GLOFs inventory of CPEC

CSTR

CSTR:11738.11.NCDC.NIEER.DB6503.2024

DOI

10.12072/ncdc.nieer.db6503.2024

Share type

Online

Category

Others

source site

Key technologies and applications of cryospheric big data mining and analysis

contributors

WU Yuhong , NIE Yong , LE Simuchu , HAN Liqin

Datasets description

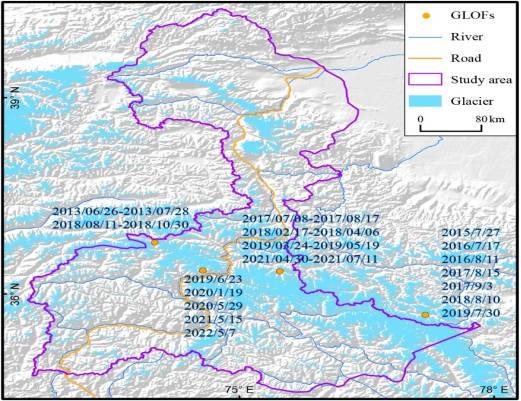

This dataset is based on historical glacial lake disaster data, using Landsat, Sentinel, Planet and other high-resolution remote sensing satellite images. Based on the characteristics of glacial lake area, lake sedimentation, breaches, residual dam bodies, flood erosion and accumulation, the authenticity and reliability of historical glacial lake disaster data in the study area are verified. Using remote sensing technology and platforms to extract relevant parameters such as glacial lake area, water volume, dam body, and impact range, and to revise or supplement event data to improve the historical glacial lake disaster database in the research area. Since 2010, there have been a total of 19 incidents of collapse in the China Pakistan Economic Corridor. The dataset of glacial lake outburst floods provides basic data for disaster prevention and mitigation, glacial lake outburst flood evaluation, and glacial lake hydrological research in the China Pakistan Economic Corridor region.

Dataset Name: GLOFsCPECSInce2010.Shp

Attribute information:

IDs: Encoding of Ice Lake

Name: The name of the collapsed glacial lake

Longitude: Longitude of the center point of the glacial lake (°)

Latitude: Latitude of the center point of the glacial lake (°)

Elevation: Average elevation of glacial lake (m)

Dam: Types of dam bodies in glacial lakes

Date_of_outburst: Ice Lake Collapse Date

Loss_damage: GLOF's damage to downstream carriers

Reference: Reference materials

Area_foot_outburst: Area before glacial lake outburst (km²)

Recent'area: Recent glacial lake area (km²)

Base information

collect time	2010/01/01 - 2022/12/31
collect place	The high mountain and high-altitude areas in the northern part of the China Pakistan Economic Corridor, along the Kashgar to Takote section of the China Pakistan Highway, all flow into the river basin
altitude	240.0m - 8560.0m
data size	37.2 KiB
data format	shp
Coordinate system

Data source description

1. Landsat land satellite imagery data: from the website of the United States Geological Survey（ https://www.usgs.gov/ ）Geospatial Data Cloud（ http://www.gscloud.cn/ ）Download.

2. Sentinel-2 satellite imagery data: from the European Space Agency（ https://dataspace.copernicus.eu/ ）Download.

3. DEM data: SRTM DEM data with a spatial resolution of 1 ", download link: http://imagico.de/map/demsearch.php .

4. Historical Ice Lake Disaster Data of China Pakistan Economic Corridor

Nie, Y. et al., 2023. Glacial lake outburst floods threaten Asia's infrastructure. Sci. Bull., 68: 1361-1365.

Zheng, G., 2021. Numerous unreported glacial lake outburst floods in the Third Pole revealed by high-resolution satellite data and geomorphological evidence. Sci. Bull., 66:1270-1273.

Veh, G., 2019. Unchanged frequency of moraine-dammed glacial lake outburst floods in the Himalaya. Nat. Clim. chang., 5(9): 379-3838.

Data processing method

1. Collection and screening of historical disaster data: Collect GLOF events in the China Pakistan Economic Corridor from various channels and screen for events that have occurred since 2010.

2. Verification of disaster events: False color synthesis of Landsat and Sentinel-2 satellite images, based on Landsat, Sentinel and other high-resolution remote sensing satellite images, using characteristics such as glacial lake area, lake sedimentation, breaches, residual dam bodies, flood erosion and accumulation, to verify the reliability of the collected GLOF events.

3. Parameter extraction: Using remote sensing technology and platforms to extract relevant parameters such as glacial lake area, water volume, dam body, and impact range, correcting or supplementing event data, and improving the historical glacial lake disaster database in the research area

4. Interaction inspection and quality control: Further verify the reliability of events through interaction inspection.

Data quality description

The glacial lake outburst flood event has undergone strict quality control, and each event has corresponding evidence, with a reliability of over 95%.

Project information

#	number	name	type
1	2022YFF0711704-05		National key R & D plan
2	4217012226		National Natural Science Foundation of China
3	2022YFF0711704-04		National key R & D plan
4	2022YFF0711703	Permafrost Variable Rapid Change Intelligent Discovery and Evolution Perception Data Engineering	National key R & D plan

Citations and annotations

In order to protect the rights and interests of the platform's scientific and technological resources, expand the services of the platform center, and enhance the application potential of scientific and technological resources, resource users are requested to mark and quote the research results (including published papers, treatises, data products, unpublished research reports, data products, etc.) generated by the use of resources in the following manner.

For the achievements published in English, please refer to the following specifications： The dataset is provided by National Cryosphere Desert Data Center. (http://www.ncdc.ac.cn).

Data reference

WU Yuhong, NIE Yong, LE Simuchu, HAN Liqin. GLOFs inventory of CPEC. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2024. https://cstr.cn/CSTR:11738.11.NCDC.NIEER.DB6503.2024.
WU Yuhong, NIE Yong, LE Simuchu, HAN Liqin. GLOFs inventory of CPEC. National Cryosphere Desert Data Center(http://www.ncdc.ac.cn), 2024. https://www.doi.org/10.12072/ncdc.nieer.db6503.2024.

EndnoteEN BibtexEN RISEN

license agreement

This work is licensed under a Creative Commons Attribution 4.0 International License.

Relevant data
File list

#	Dataset title
1	Dataset of Ice and Snow Collapse Events in the China Pakistan Economic Corridor (1980-2024)
2	Landslide inventory of CPEC
3	Debris flow inventory of CPEC
4	Surge glacier of CPEC
5	Freeze thawing in CPEC
6	Glacier distribution map of China-Pakistan Economic Corridor
7	Data set of glacier and ice lake distribution in key areas of China-Pakistan Economic Corridor (2013-2017)
8	Permafrost distribution data set of China—Pakistan Economic Corridor (2016)
9	A dataset of surface deformation along the China-Pakistan Economic Corridor from 2014 to 2018
10	Spatial and temporal dataset of precipitation in China-Pakistan Economic Corridor, from 1901 to 2018

#	title	file size
1	_ncdc_meta_.json	7.8 KiB
2	冰湖溃决洪水

add comment

Scan and browse on mobile

How to get the data

Protection

2026/06/07

Theme:
Ice Lake Collapse Flood China Pakistan Economic Corridor
Subject:
physical geography
Time:
2010 2022
Place:
China Pakistan Economic Corridor

east 77.75

west 72.50

south 34.50

north 40.25
